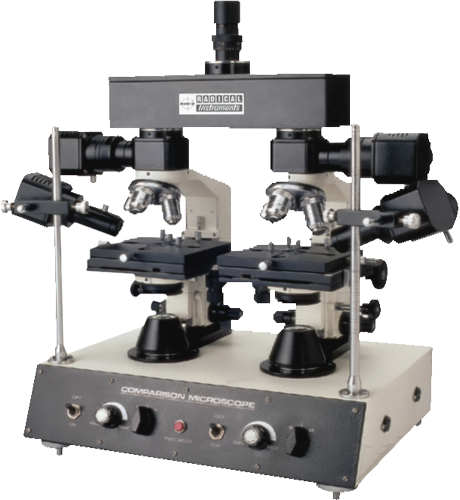

Radical Forensic Comparison Microscope were developed about four decades ago in consultation with the leading Scientists and Criminologists of world repute, thereafter The instruments are being continually updated. Comparison Microscope are the most advanced & versatile instruments invented for comparative Micro study in Forensic Science, geology, Metallurgy, Mineralogy, Crystallography and Chemical Microscopy . By means of this sophisticated instrument, two micro samples can be studied under one Eye. It combines the latest opto-mechanical developments in light microscopy.
This instrument consist of two microscopes & their split images can be viewed simultaneously, with The image from one being on the left side & the other image on the right side. This Microscope can Also compare fibre, hair, bullets, paint fragments under the same lighting conditions & magnification.
Both the Microscope, having their own illuminations, quadruple revolving nosepieces, coarse and Fine motion knobs, 120mm x 120mm stages, are mounted upon a heavy built-in light base. Leveling Screws are provided to ensure their exact alignment. Transmitted illumination for transparent objects, Incident light for opaque objects and spot lamps for papers are provided for different applications. The comparison bridge brings both the beam paths together and two images of object under Examination, separated by a thin line are observed side by side in the field of view through a Monocular tube.
Standard comparison Microscope are available with Magnification from 20x to 600x having following optical Combination:
Achromatic Objectives :
4x, 10x and 40x SL
Huy. Eyepieces :
Wf10x, H15x, H10x micro And H5x cross.
All paired objectives are flat field, strain free and having Anti- reflection coating. The Microscope is supplied with a special vice type Mechanical stages to hold objects like bullets, coins, Industrial materials etc. and another plate to hold Materials like currency notes, cartons, stamps, finger Prints etc.
Total Weight :
Size of cases :
46x42x45cm. & 57x41x26 cm.
Photo micrographic Attachment Projection Screen Attachment, Semi Plan Objectives 2.5x, 20x, 60x, & Oil Immersion 100x, Spare Eyepieces, USB Camera with Necessary software etc.
